Concept
Floorplan basement![POT floorplan ground floor]()

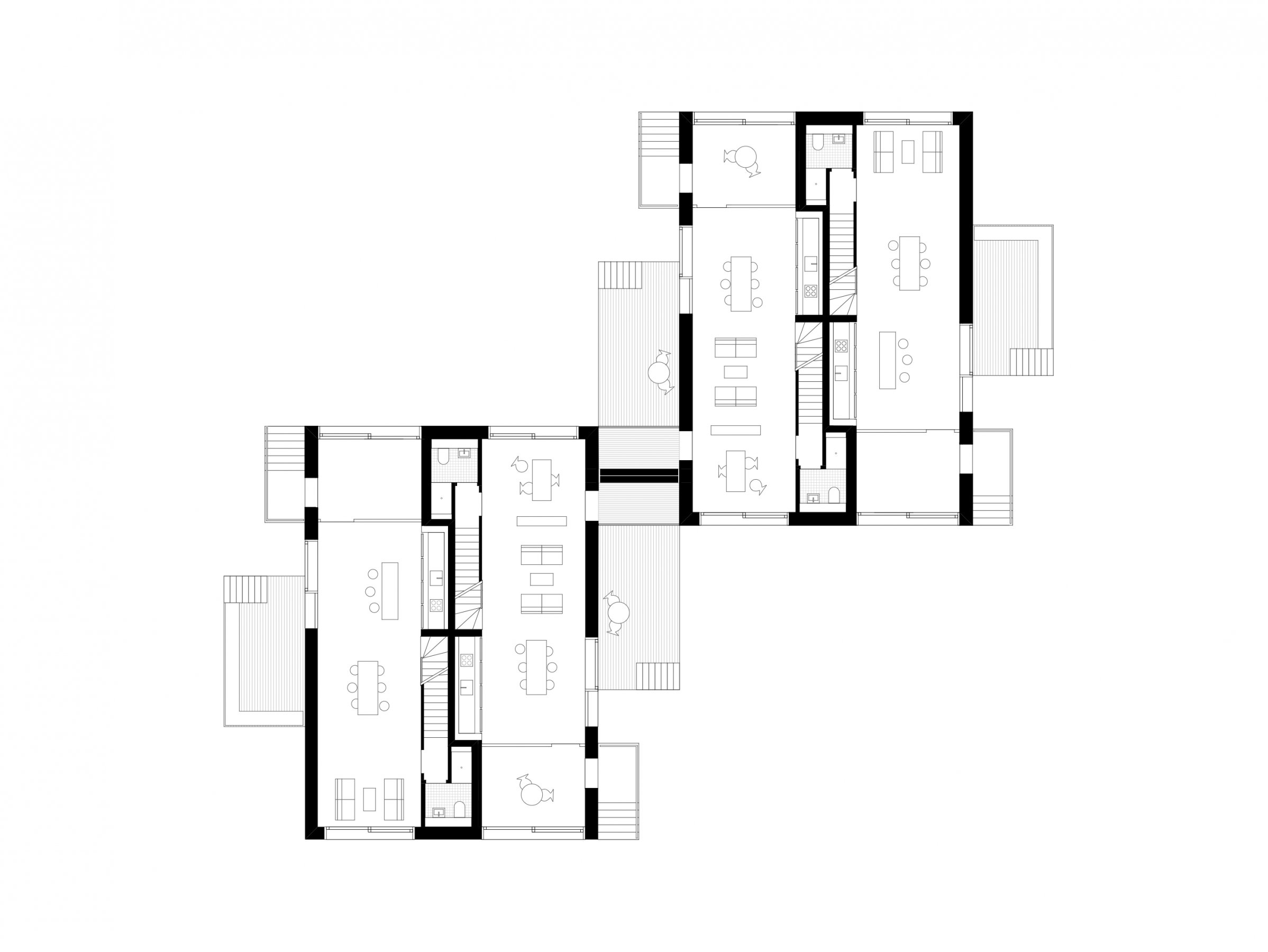

Floorplan ground floor![POT Floorplan first floor]()

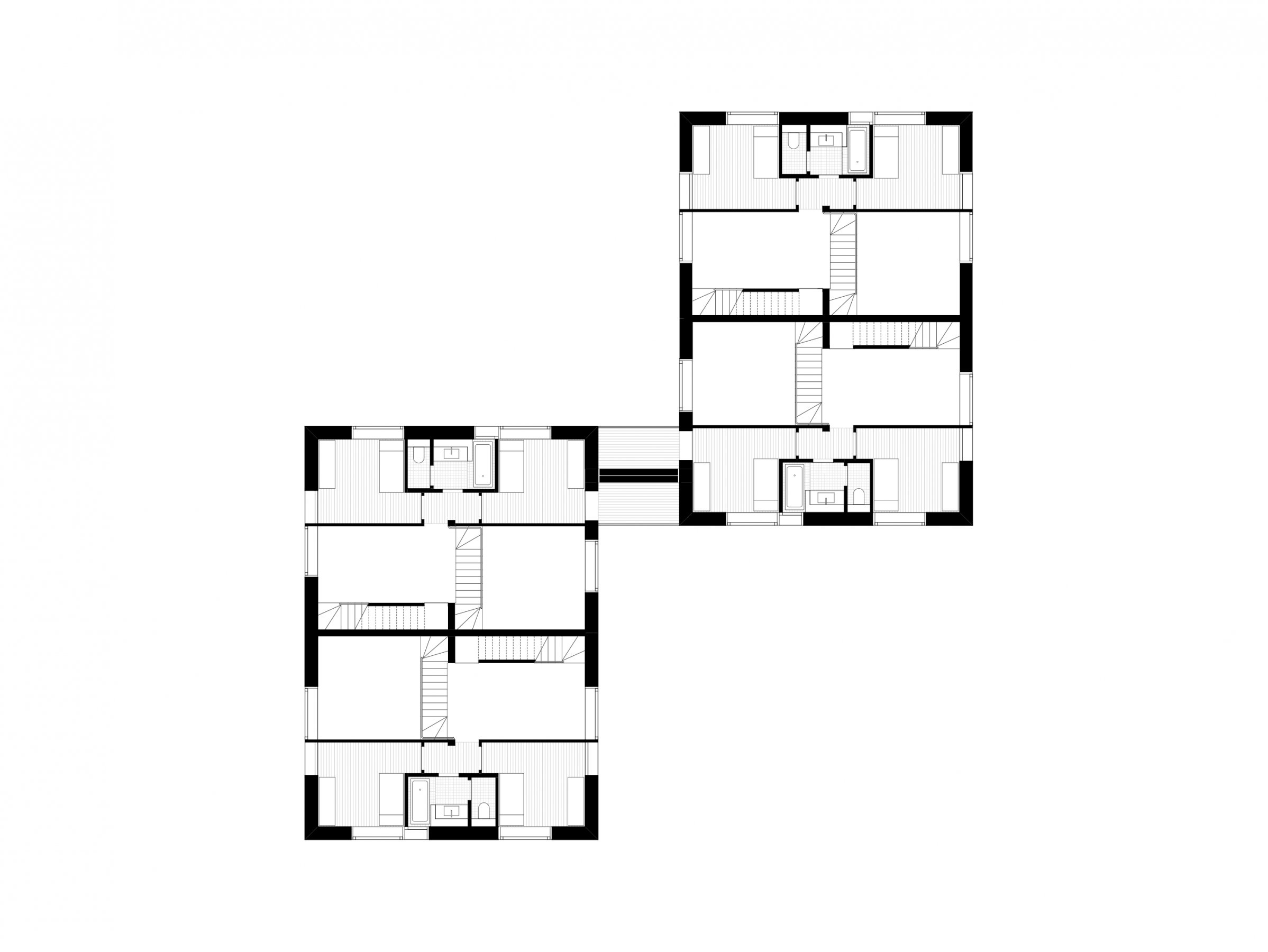

Floorplan first floor![POT Floorplan attic floor]()

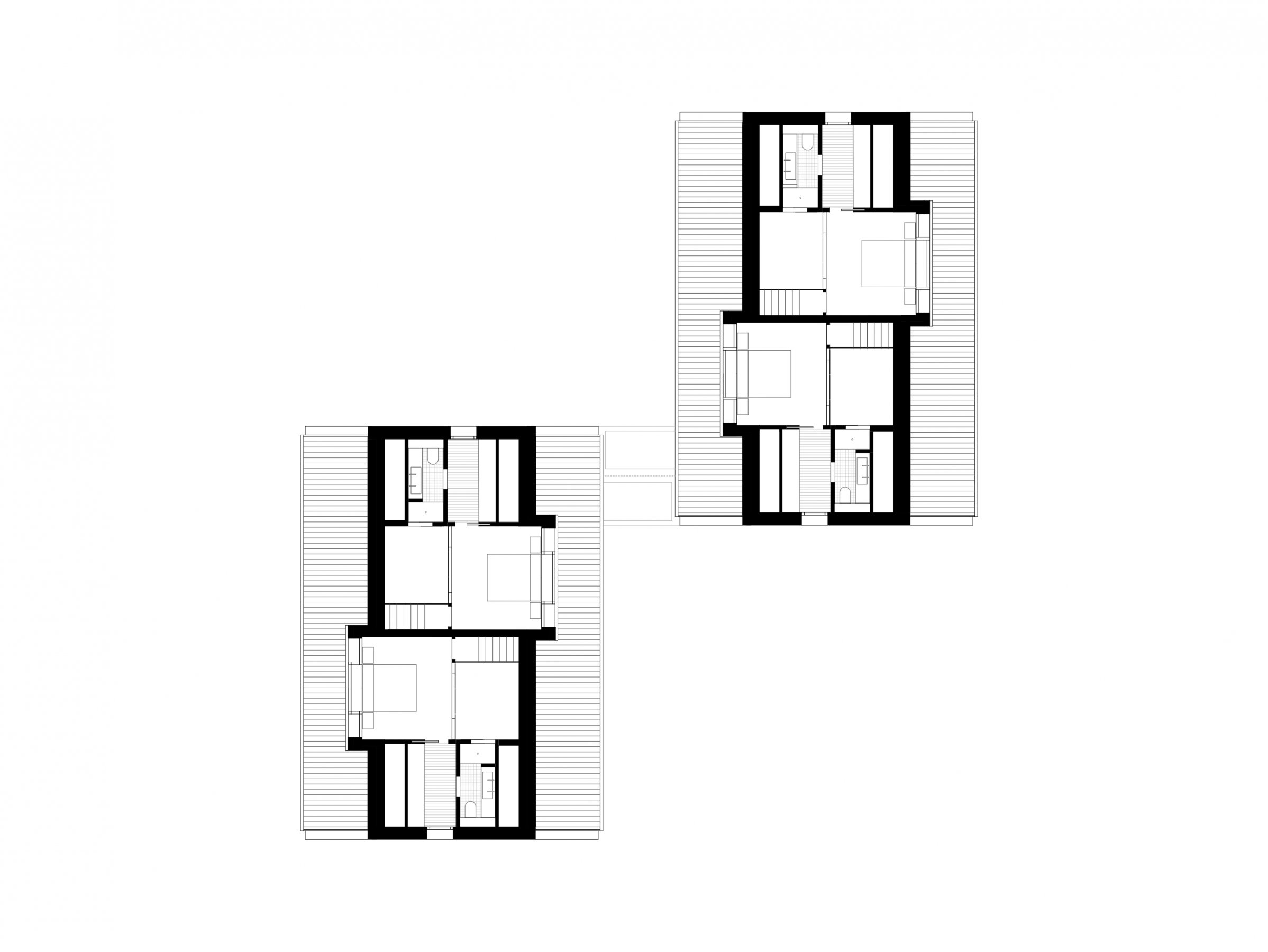

Floorplan attic floor![POT cross section]()

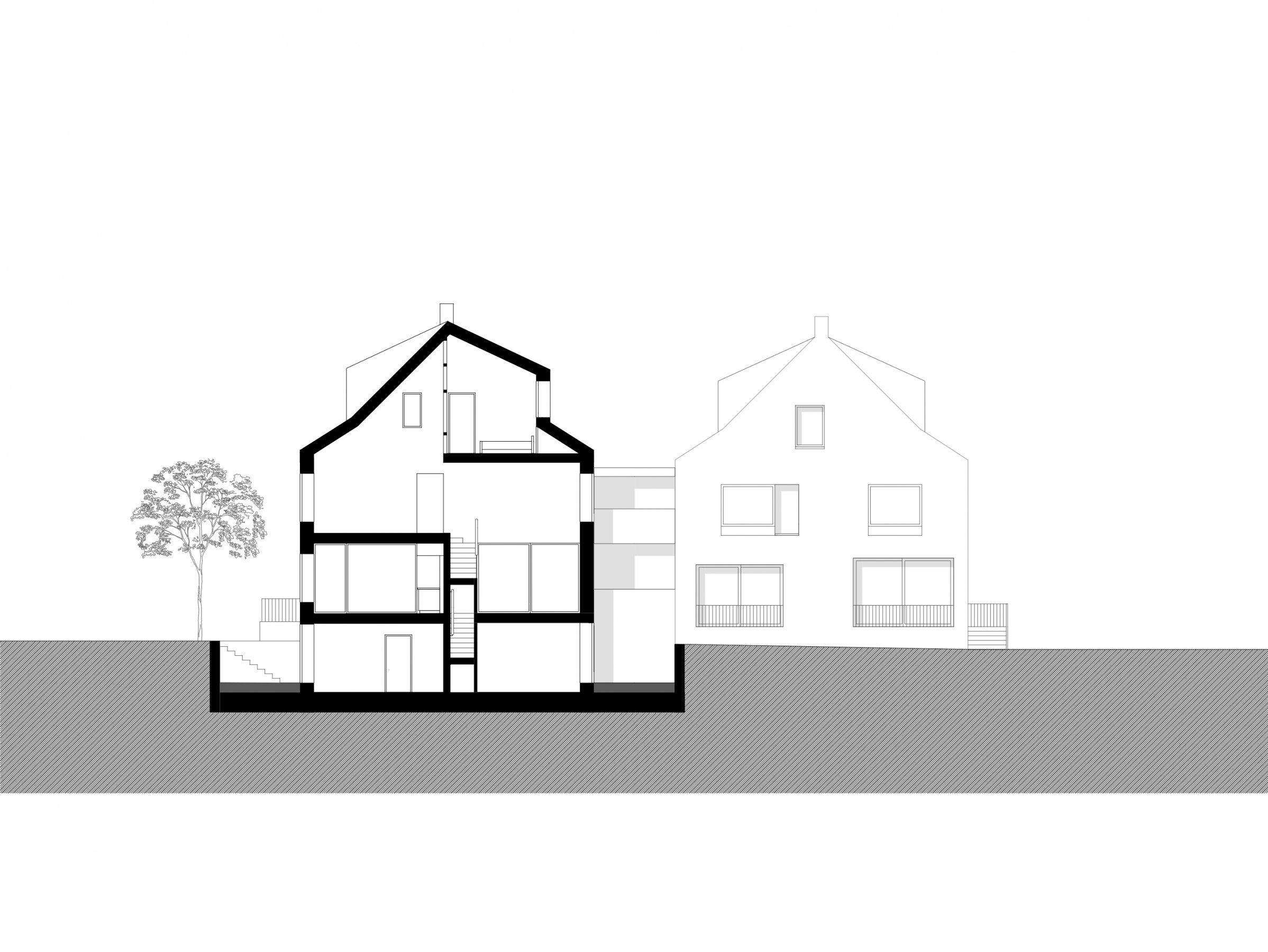

Cross section![POT longitudinal section]()

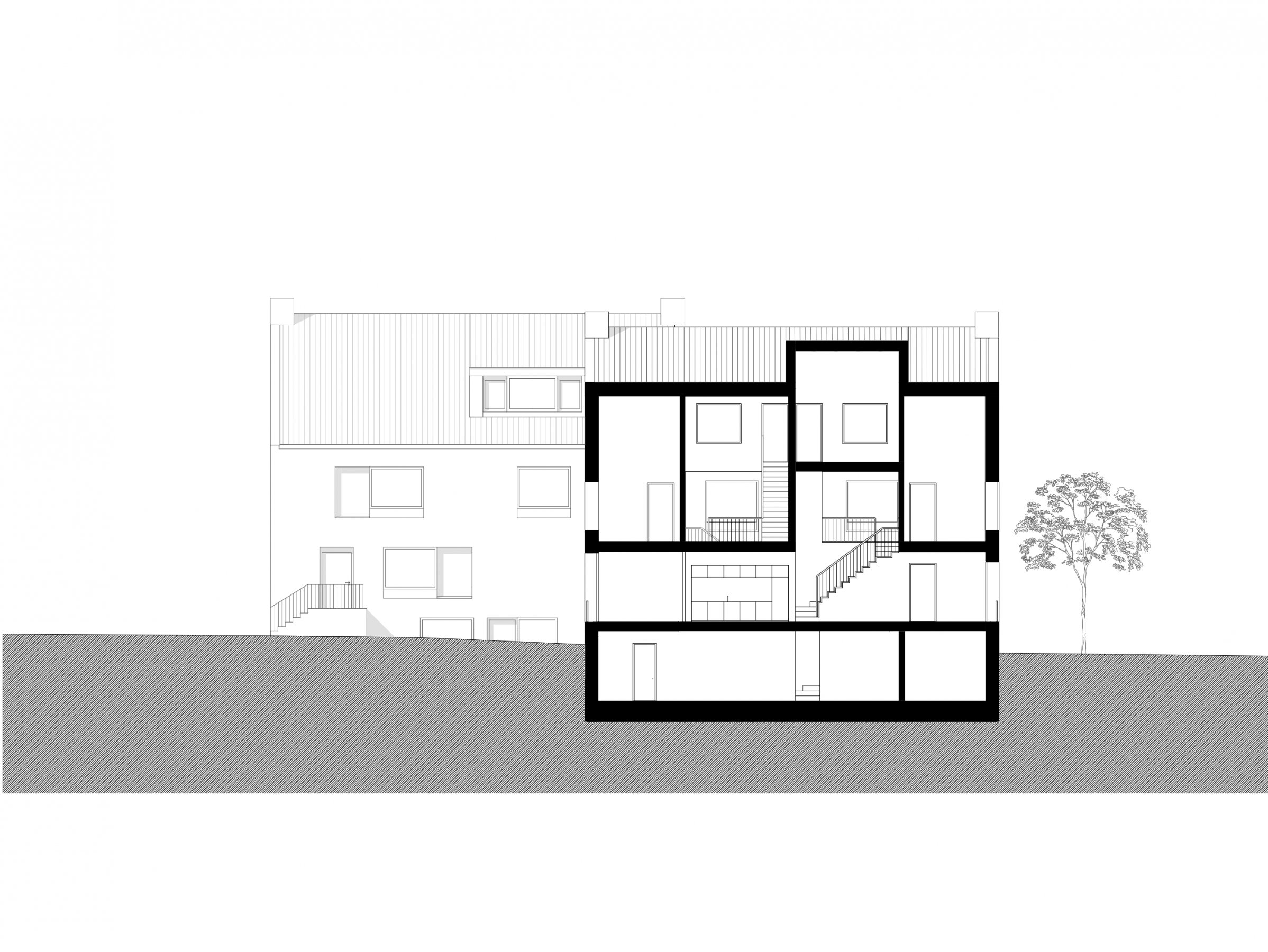

Longitudinal section![POT Elevation east]()

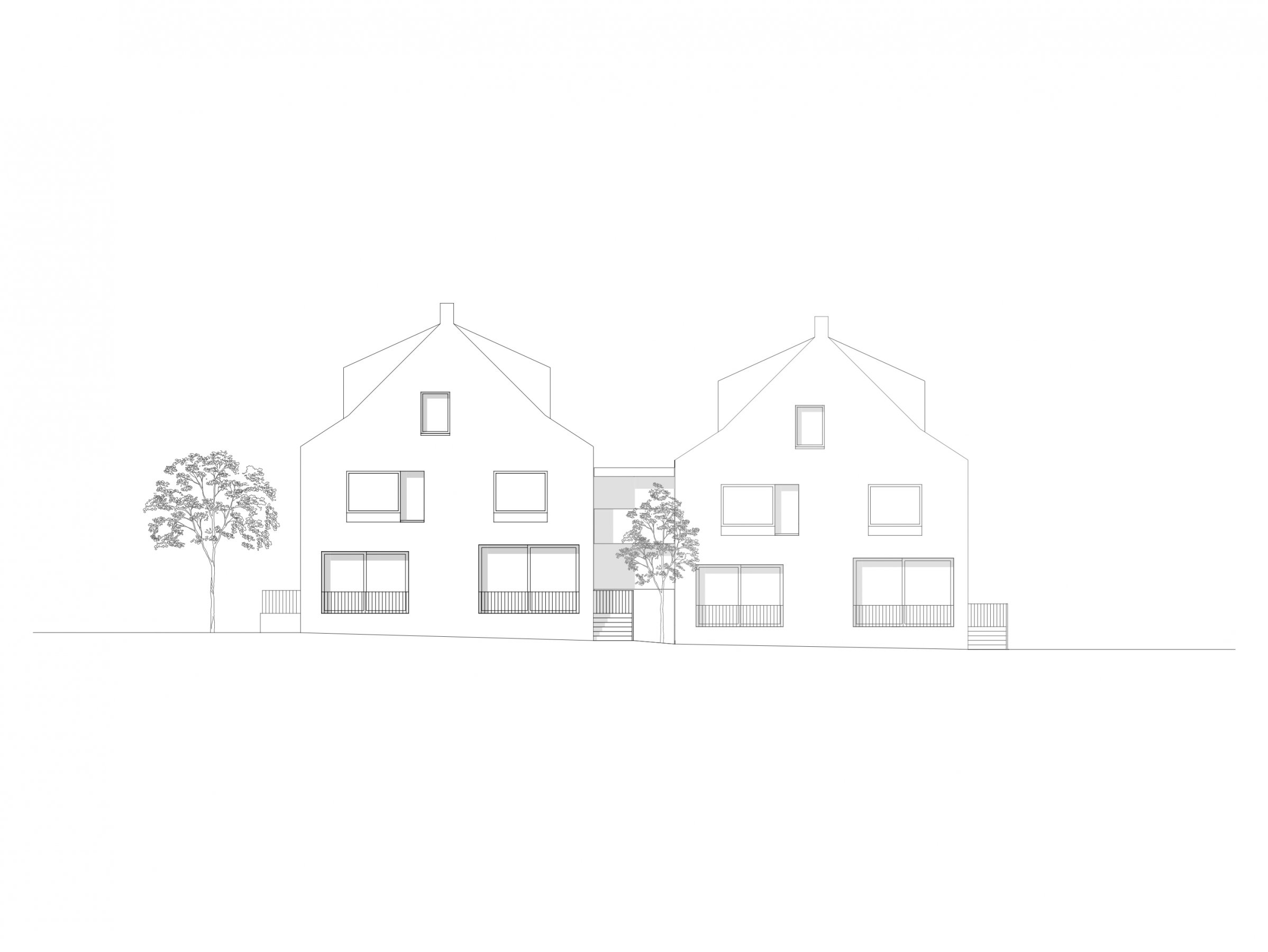

Elevation east![POT Elevation west]()

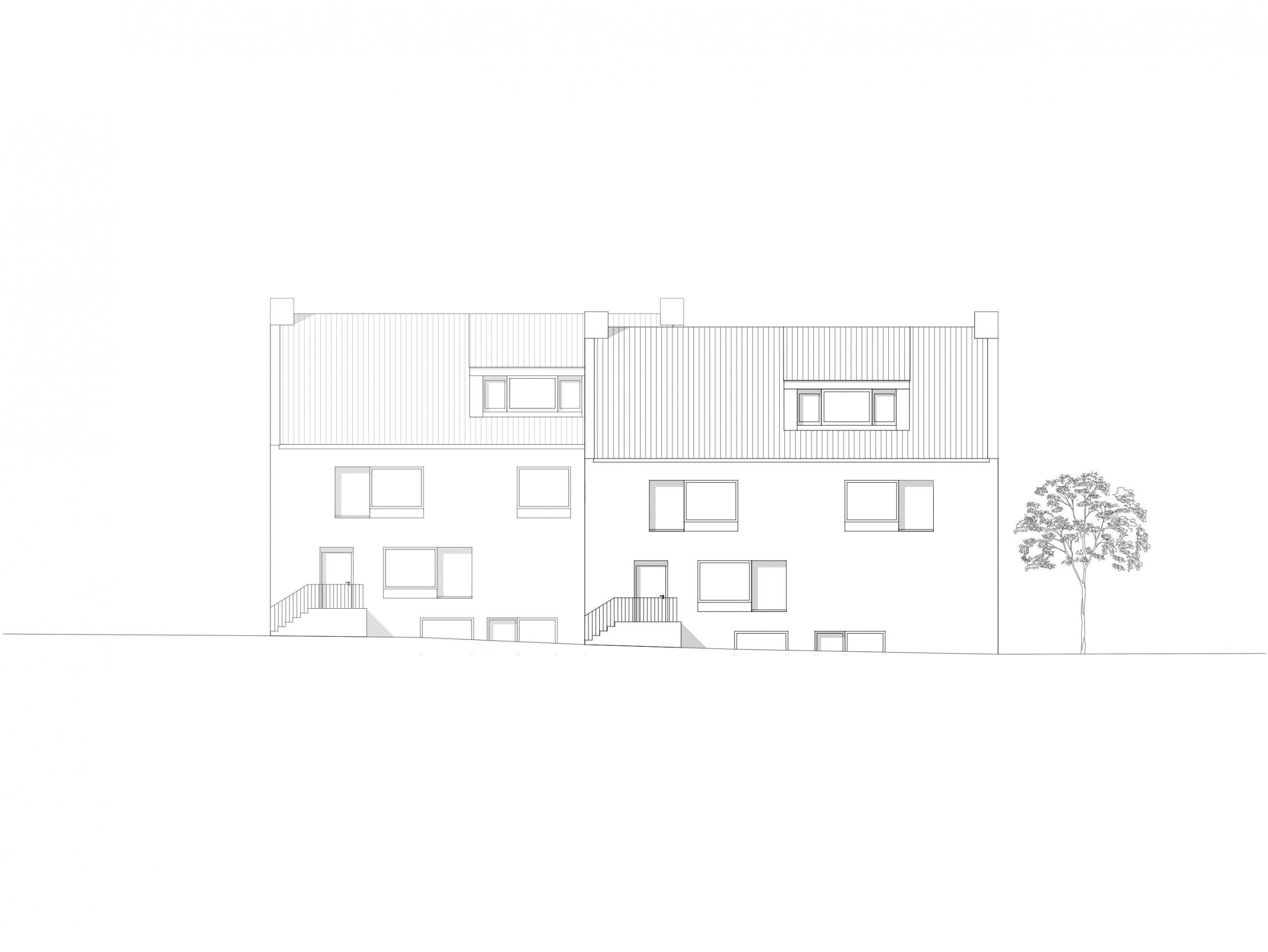

Elevation west
Facts
Scharoun Siedlung Zum Hottengrund
Berlin, Germany
Study 2017, realization 2018 -
Client:
Assoziation Bankum Immobilienmanagement GmbH, Berlin, Germany
Architect:
Bruno Fioretti Marquez
Project directors:
André Mädler, Riccardo Paolin
Project team:
Johannes Hackethal
Planning:
Building Services: Ingenieurgesellschaft Lang mbH, Berlin, Germany
Structural Engineering: ifb Frohloff Staffa Kühl Ecker, Berlin, Germany
Consulting:
Building Physics: Müller BBM GmbH, Berlin, Germany
Fire Protection: Sachverständigenbüro Arnhold, Weimar, Germany
Building data:
Gross Floor Area: 800 m²
Number of levels: 4
Net floor area: 547 m²
Gross Building Volume: 4.201 m³
